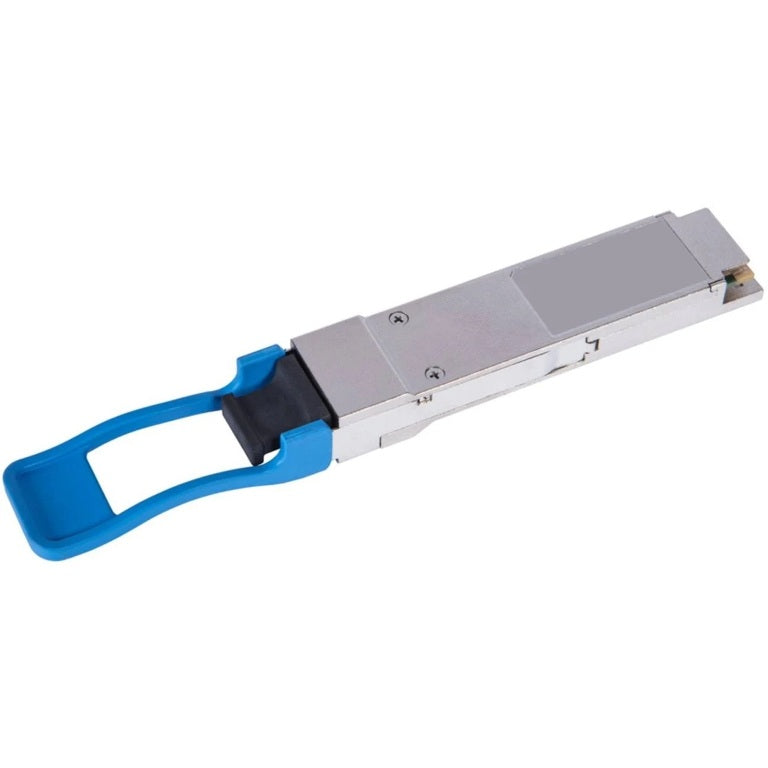

HPE JL309A 100Gb/s QSFP28 100m MPO Multi-Mode Fiber Transceiver

Name: HPE JL309A 100Gb/s QSFP28 100m MPO Multi-Mode Fiber Transceiver
Brand: HP
Price: 1190.0 USD
Availability: InStock

Prix réduit $1,190.00

👁️ people watching this product now!

Achetez en toute confiance

Expédition rapide
Échanges faciles
Avis de confiance
Matériaux écologiques
Garantie de prix

Informations générales

Interfaces/Ports

Informations techniques

Maximum Data Transfer Rate
100 Gb/s
Ethernet Standard
100 Gigabit Ethernet
Fiber Optic Mode
Multi-mode
OS Platform
PC
Expansion Slots Details
QSFP28
Transciever-Modules Usage
Switching Network
QoS
Yes
Cable Standard Fiber/Twisted Pair
850 nm
Maximum Distance Supported
100 m
Interfaces/Ports Details
x MPO Connector 100GBase-SR4 QSFP Optical Fiber

Divers

Compliance Standards
WEEE,RoHS
Assembly Required
Yes
Eco Friendly
Yes

Capacité de stockage

The HPE JL309A is a hot-pluggable QSFP28 transceiver designed for 100 Gb/s Ethernet connectivity over multimode fiber. Complying with the IEEE 100GBASE-SR4 standard, it operates at an 850 nm wavelength and delivers up to 100 m reach over OM4 fiber (approximately 70 m on OM3) via a 12-fibre MPO/MTP interface. Fully conformant with QSFP28 MSA, CAUI-4, and IEEE protocols, the module features Digital Optical Monitoring (DOM) support for real-time diagnostics and is optimized for high-density data center environments and HPE Aruba networking platforms.
